ANZ eGate (MPGS) Payment Gateway - Magento 2
Compatible With Magento Edition
Open Source (CE): 2.3, 2.4Commerce on prem (EE): 2.3, 2.4
Commerce on Cloud (ECE): 2.3, 2.4
Overview
Back to topMagento 2 ANZ eGate MPGS Payment Gateway allows you to use ANZ eGate (MPGS) as a credit card processor using their fully integrated API process. You can process Visa and Mastercard by default and optionally accept American Express, Diners Club, and JCB after further activation by ANZ Bank.
ANZ eGate is a widely used payment gateway service for accepting online payments in Australia and New Zealand. ANZ eGate Payment Gateway is a secure platform that helps build a smooth payment system and thus helps win the customers’ trust and enhance the user experience.
How to use

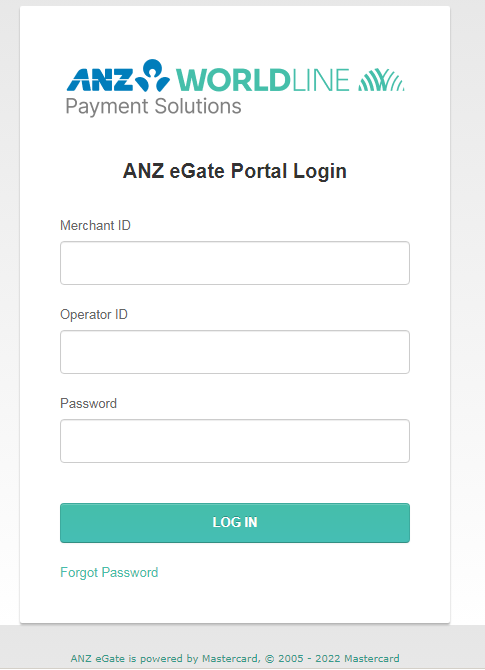

In order to use this extension, you must have an ANZ eGate merchant account and login credentials (Merchant ID, Operator ID and Password) to access Merchant Administration (ANZ eGate Portal)
Payment Integration Options
The extension integrates two payment methods; they will be shown in the Magento admin panel after it's installed successfully.

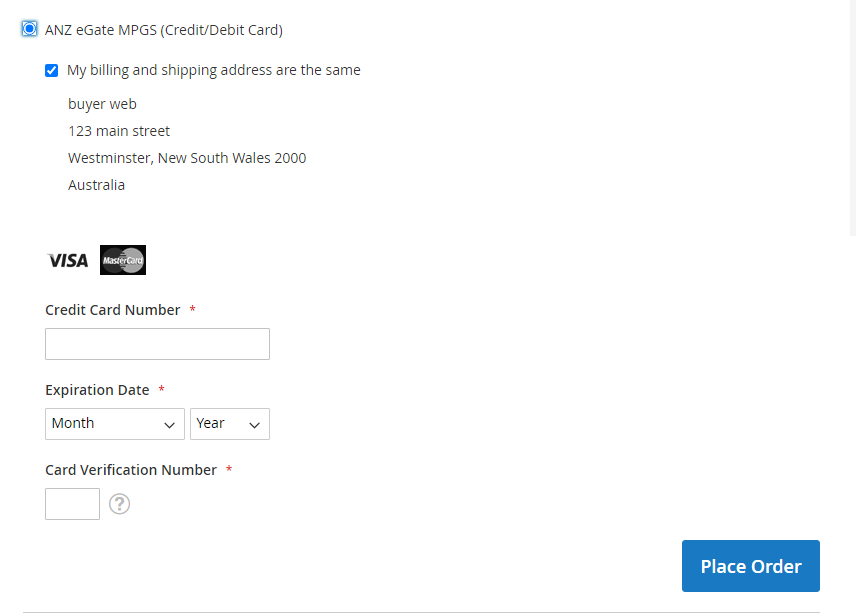

ANZ eGate Direct Payment: Keep your customer on your site during the entire checkout process

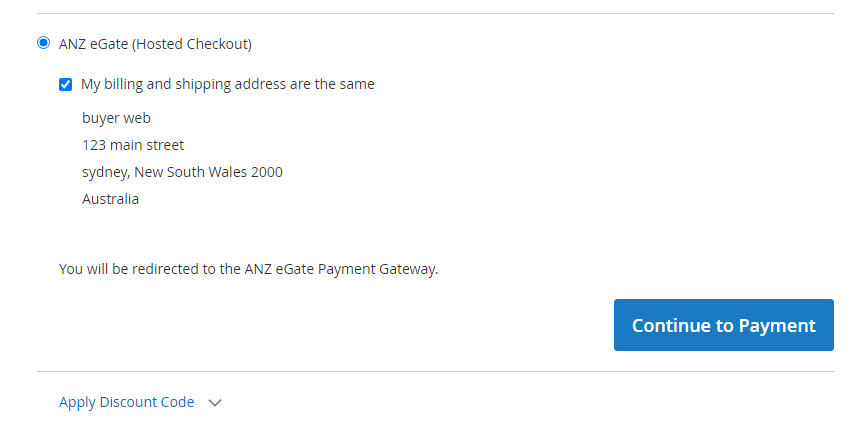

ANZ eGate Hosted Checkout: Direct your customer to a secure payment form during the checkout process. Once they’ve paid, they’ll be redirected back to your site
Features of ANZ eGate (Hosted Checkout)
- Support merchants using ANZ eGate with MPGS (MasterCard Payment Gateway Services) as the backend.
- Support 3D-Secure, EMV 3D Secure (3DS2)
- Support credit or debit cards
- Secure Checkout Process
- Encrypted the payment credentials
- Capture New Sales
- Authorize and Capture
- Refund Online
- Create invoice automatically
- Support SSL Certificate
- Support multiple websites
- Support multiple store views
- Support multiple currencies
- Unlimited domains
- Compatible from API Version 69 or later (the extension is using current API version 75)
ANZ eGate 3DS2 Authentication Flows
1. A payer browses your shop site, selects one or more products, proceeds to the payment page, and selects to pay with a card that supports 3DS1 and 3DS2.
2. Initiate Authentication: You ask the gateway to check with the card scheme if the card is enrolled for 3DS.
3. If 3DS authentication of the payer is available, the gateway returns the authentication details in the response.
4. The gateway returns details of the supported ACS call. You must submit the ACS call details as a form post in a hidden iframe, so that the ACS can collect additional data.
5. Authenticate Payer: You ask the gateway to perform the initiated authentication.
6. The gateway provides you with details of the authentication for a challenge flow (where the payer is required to respond to a challenge presented by the issuer). If the issuer requires the payer to respond to a challenge, you redirect the payer’s web browser to the ACS, which presents its authentication UI. The issuer returns the authentication result to the gateway. The gateway redirects the payer directly to your website.
7. Use the 3DS Authentication Transaction ID in a Payment Operation: You submit the payment for processing.
8. You display the order confirmation page to the payer.
Features of ANZ eGate (Direct Payment)
- Support merchants using ANZ eGate with MPGS (MasterCard Payment Gateway Services) as the backend.
- Support credit or debit cards
- Secure Checkout Process
- Encrypted the payment credentials
- Capture New Sales
- Authorize and Capture invoice online.
- Create invoice automatically
- Refund Online
- Support SSL Certificate
- Support multiple websites
- Support multiple store views
- Support multiple currencies
- Unlimited domains
- Compatible from API Version 69 or later (the extension is using current API version 75)
Test Environment
If you need to see the demo of ANZ eGate (MPGS) Payment Gateway extensionfor Magento 2, please feel free to contact us or [email protected]
Standard Test Data – All Supported Regions
Mastercard: 5123450000000008 Expiry Date: 01 / 39 3-D Secure Enrolled: Y
Mastercard: 2223000000000007 Expiry Date: 01 / 39 Secure Enrolled: Y
Mastercard: 5111111111111118 Expiry Date: 01 / 39 Secure Enrolled: N
Mastercard: 2223000000000023 Expiry Date: 01 / 39 Secure Enrolled: N
Visa: 4508750015741019 Expiry Date: 01 / 39 3-D Secure Enrolled: Y
Visa: 4012000033330026 Expiry Date: 01 / 39 3-D Secure Enrolled: N
You May Be Interested
Why Choose Our Extension
When you purchase the extension, you will get Free Support from our team for 12 months. if you face any issues related to the extension, our team will fix it and make sure it work with your website.
The extension included free updates for 12 months.
Our code is 100% open-source and unencrypted. Easily add your own customizations.
Unlimited domains and websites that you want to use the extension.
We stand behind the quality of our extensions with a 30-day money-back guarantee.
Installation
Back to topExtract the file into app/code/PL/Mpgs/
From a terminal, run the following commands:
php bin/magento setup:upgrade
php bin/magento setup:static-content:deploy
php bin/magento cache:clean
Release Notes
Back to topVersion 2.3.0
Released on June 28, 2024
- Compatible with ANZ eGate API version 80 or later
- Added customer details (firstname, lastname, email, phone) to payment request for EMV 3D Secure requirements
Version 2.2.4
Released on February 9, 2024
- Fixed the maximum characters of the address fields.
- Added Webhook notifications
- Added CSP whitelist
- API Version 75.
- Show error code and error description if the payment credentials are not correct.
- Fixed small bugs
Version 2.1.1
Released on September 12, 2022
